HDMI switch 5 to 1

Specifications:

HDMI resolution.............................................24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i

Support video color format.....................................................24bit/deep color 30bit,36bit

Support audio format................................DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD

Max bandwidth...........................................................................................250MHz

Max baud rate..........................................................................................7.5Gbps

Input/Output TMDS signal..................................................................0.5~1.5Volts p-p(TTL)

Input/Output DDC signal.............................................................5Volts p-p (TTL)

Input cable distance.............................................................<=15m AWG26 HDMI standard cable

Output cable distance...........................................................<=25m AWG26 HDMI standard cable

Max working current.....................................................................................350mA

Power adapter format Input.................................AC (50HZ, 60HZ) 100V-240V; Output: DC5V/1A

Operating Temperature range........................................................-15 to +55 Centigrade

Operating Humidity range............................................................5 to 90%RH (No Condensation)

Dimension(L x W x H).................................................................................115x60x24 (mm)

Weight.........................................................................................................190g

Features:

1. Five HDMI 1.3 input signals switched to a single HDMI 1.3 sink devices

2. HDCP 1.2 protocol compliant

3. Support deep color 30bit, 36bit

4. Support Blue-Ray 24/50/60fs/HD-DVD/xvYCC

5. Digital audio format, as DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD

6. Support signal retiming

7. Support input up to 15metres AWG26 HDMI 1.3 standard cable length, output up to 25metres AWG26 cable length

8. Inputs can be switched with the IR remote control,also can be controlled by button.

9. It can smartly jump over those input sources which are not connected.

10. With the smart function of memory, it can come back to the latest status when restarted or reconnected.

11. No loss of quality.

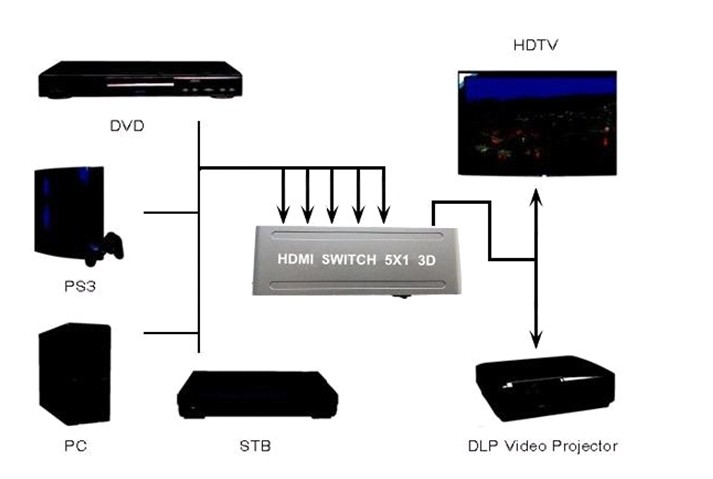

Sketch map
