HDMI switcher 3X1 with PIP function (4K*2K,3D)

Specifications:

HDMI version HDMI 1.4b

HDMI resolution UP TO 4K x 2K @ 30Hz

Video format 24/30/36 bit deep color

Support audio format DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD

Max bandwidth 340MHz

Max baud rate 3.4Gbps

Input cable distance ≤15m AWG26 HDMI standard cable

Output cable distance ≤15m AWG26 HDMI standard cable

Max working current 300mA

Power adapter format input:AC (50HZ, 60HZ) 100V-240V; Output: DC5V/1A

Operating temperature range (-15 to +55℃)

Dimension(LxWxH) 178x58x20 (mm)

Weight 220g

Features：

*Switched seamlessly, Switch one input source to the other input source quickly

*With InstaPotechnology , this product achieves seamless switching among Input

sources.and gets big advantages compared to the previous switcher which needs

to wait for a period of time in the switching process.

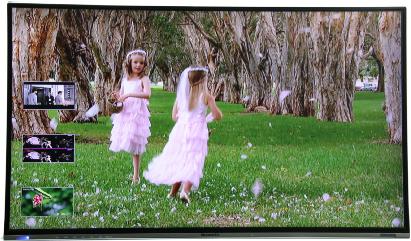

*picture-in-picture(PiP) video preview

*HDMIV1.4,support3D ，4Kx2K

1.Support HDMI1.4b

2.Support 3D

3.Support video resolution up to 4Kx2K@30Hz,1080p@120Hz,and 1080P 3D@60Hz

4.Support 3.4Gb datarate for tmds clock up to 340Mhz

5.Support 24/30/36bit deep color

6.Support single and high definition display for multiple sources, such as DVD Players

and Stellite Receivers, Digital Projectors,A/V Receivers,TV Boxes

7.5V/1Apowersupply

8.Picture-in-picture(PIP)function

9.Switched seamlessly, Switch one input source to the other input Source quickly.

Sketch map
