HDMI to VGA+Ypbpr Converter

Specification:

Input Video signal ………….…………………………..…………………….… 0.5~1.5Volts p-p

Input DDC signal ……………………………………………………………….. 5Volts p-p (TTL)

VGA or YPbPr output………………………………….Support up to UXGA and 1080I(60Hz)

Audio output….……………………………………………………………R/L Analog and optical

Max transmission bandwidth…….………………….……………………………………5.1Gbps

Max working current………………………………………………………………………...600mA

Power adapter format………………..Input:AC (50HZ, 60HZ) 100V-240V; Output: DC5V/1A

Operating Temperature range……..…………….………………………………… (-15 to +55 Centigrade)

Operating Humidity range………………………….….……….5 to 90%RH (No Condensation)

Demension(LxWxH)………………………….….……….178x65x27(mm)

Weight………………………….….……….380g

Features:

1. One HDMI input signal convert to one YPbPr+SPDIF or VGA+SPDIF sink device

2. Support audio output: SPDIF(Optical)+ R/L analog .

3. Support output : Support up to UXGA and 1080I(50/60Hz),the same format as input

4. LED indication: when source or sink is working, LED relative to is light.

5. No loss of quality

6. Need DC5V/1A power supply.

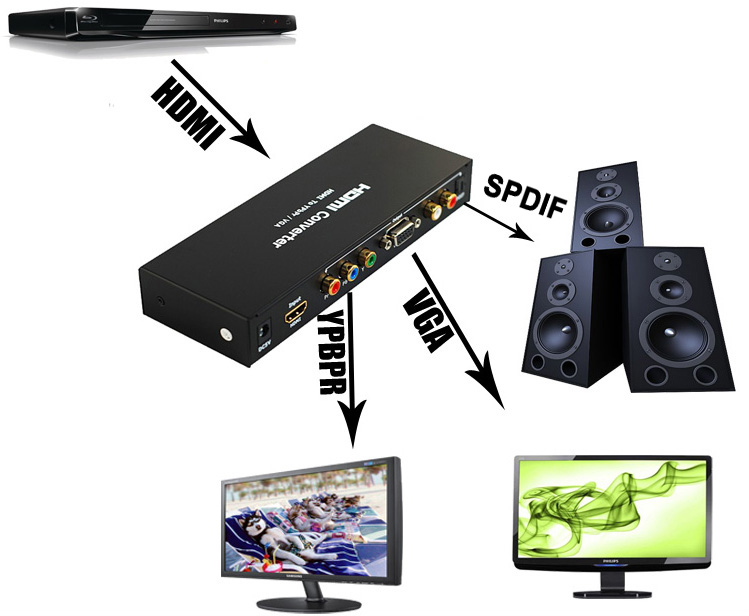

Sketch map
