HDMI Matrix 8x8

Specifications:

HDMI resolution……………………....24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i

Support audio color format …………………………..…………. …............................12bit

Support audio format……………DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD

Max baud rate…….…………….…………………………………………. ……..2.25Gbps

Input and output TMDS signal………….…………………………..…… 0.5~1.5Volts p-p

Input and output DDC signal……………………………………………..5Volts p-p (TTL)

Input cable distance.……………………….……………….………….≤15m HDMI AWG26

Output cable distance…………………………….…...≤20m AWG26 HDMI standard cable

Max working current………………………………………………………………………2.0A

Power adapter format Input………input:AC(50HZ, 60HZ) 100V-240V;output: DC12V/5A

Operating Temperature range……..…………….…………………………… (-15 to +55℃)

Working humidity range………………………….….………5 to 90%RH (No Condensation)

Dimension (L x W x H)……………………………….……………………435*184*16 (mm)

Weight…..………………………………………………………..…………….………..1944g

Features:

● Eight HDMI signals input to be independently distributed or switched to eight displays which support HDMI signal input

● Support HDMI 1.3 and HDCP1.4

● Support CEC

● Support true color 12 bit

● Support Blu-Ray DVD24/50/60fs/HD-DVD/xvYCC

● Support audio format DTS-HD/Dolby-trueHD/LPCM7.1/DTS/DOLBY-AC3/DSD

● Support signal timing reset

● Support AWG26 HDMI standard cable, input up to 15 meters,output up to 20 metes

● Input ports can be controlled by IR Remote Control

● Via RS-232 control,the Machine can upgrade the software, and the input and the output can be switched by computer

● No signal loss

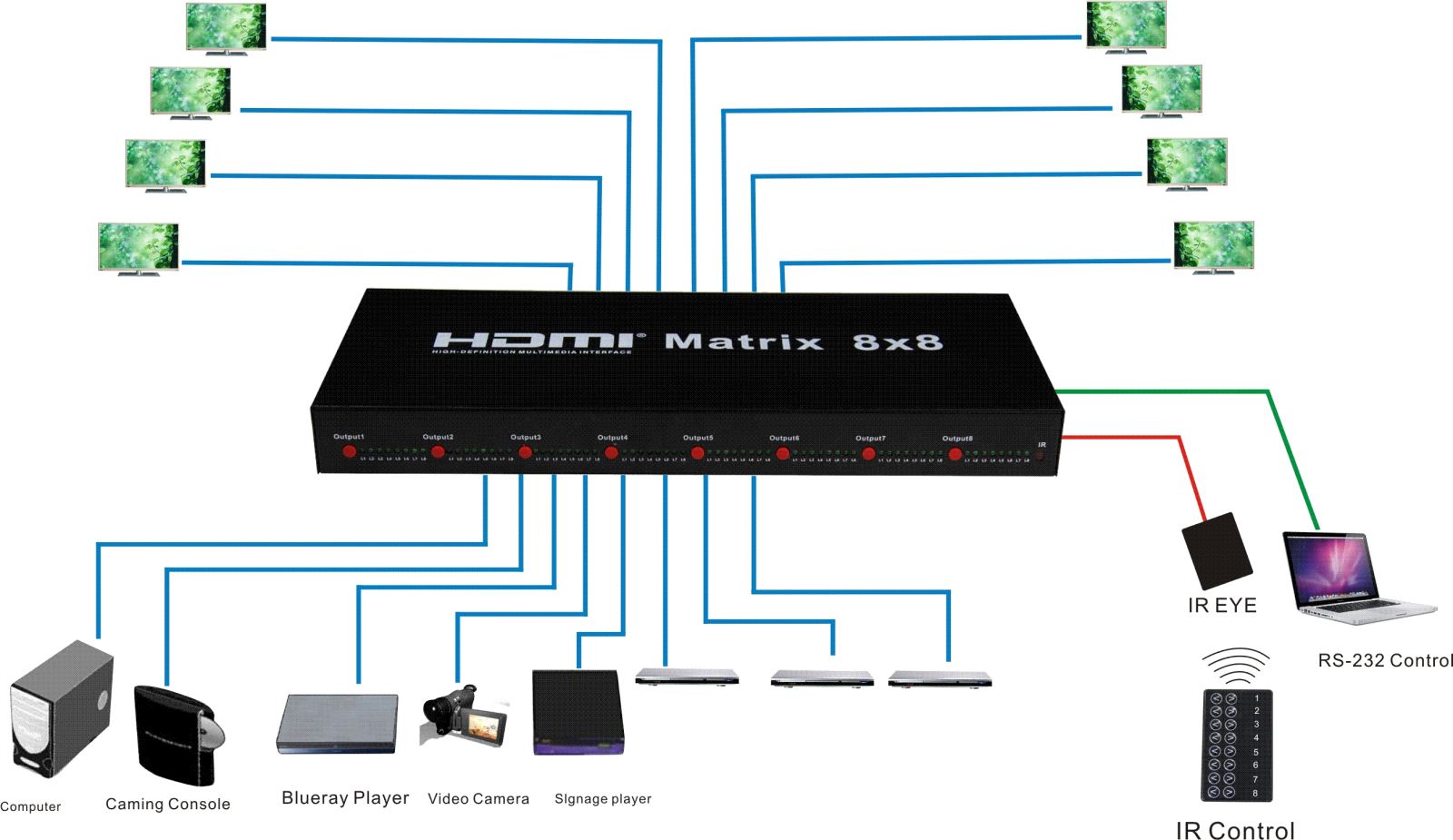

Sketch map
