1x4 HDMI Splitter (4K*2K) with IR

1 to 4 HDMI Splitter with IR can connect 1 HDMI source to 4 HDTVs
Have IR control of the source at the multiple TV locations

One HDMI input signal split to two HDMI sink devices

With built-in IR extender function  to control the HD source

Support 3D

Support Blue-Ray 24/50/60fs/HD-DVD/xvYCC

Digital audio format, as DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD

Need DC5V/1A power supply

Package list :

1,The IR Adaptor
2,The IR Receiver Unit
3,The IR Transmitter unit
4,5V Power Adaptor
5,one pc of Manual

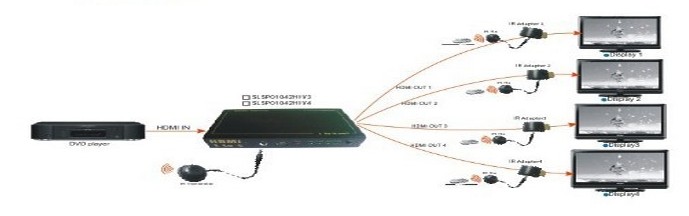

How to use it

(1) To use one HDMI Cable to connect the HD Source with the HDMI input port of the splitter 1X4

(2) To use one HDMI Cable to connect IR adaptor’ HDMI input port with HDMI output port of

the splitter and also use one HDMI cable to connect the HDMI output port of the IR adaptor

with the input port of the display.

(3) To connect the 5V power adaptor wioth the splitter.

(4)To connect the IR Transmitter unit with the IR input port of the splitter.

(5)To connect the IR receiver unit with the IR head input port.

(6)To keep the transmitter unit of IR-TX pointing directly at the IR tube of the signal

source and then it can use the signal source remote controller to control the signal source

at the display end.
