HDMI switch 4 to 1

Specifications:

HDMI version ………………………….........………………………………………….. HDMI 1.3

HDMI resolution ………………………....24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i

Support video color format ………….............………………..……… 24/30/36 bit deep color

Support audio format……………….DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD

Max bandwidth………………………………..…………………………………………….225MHz

Max baud rate……………….…….………..………….…………………………………..2.5Gbps

Input cable distance..…... …………………………..……≤25m AWG26 HDMI standard cable

Output cable distance………………………………….…...≤15m AWG26 HDMI standard cable

Max working current……………………………………………………………………….....800mA

Power adapter format..Input: …………….....AC (50HZ, 60HZ) 100V-240V; Output: DC5V/1A

Operating Temperature range……..…………….………………………………… (-15 to +55℃)

Dimension (L x W x H) ……………………………….......………………………178x58x20 (mm)

Weight…..……………………………………………….………..…….………………………240g

Features:

Support HDMI1.3

Support 3D

Supports highest video resolution 1080p/60Hz (480p 560p 720p 1080p)

Support 2.5Gbps data rate for tmds clock up to 225MHz

Support 36 bit deep color

SupportstandardAWG26 cable, input up to 25 metres ,output up to 15metres

Supports single and high definition display for multiple sources, such as DVD Players

and Stellite Receivers, Digital Projectors, A/V Receivers, TV Boxes

Remote Control for operational flexibility and easy to control

.Need DC5V/1.5A power supply.

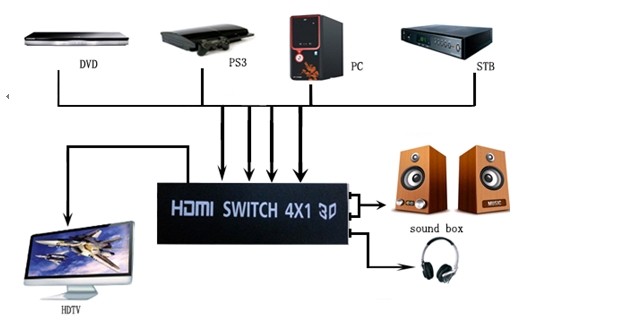

Sketch map
