HDMI splitter 1 to 4

Specifications:

HDMI resolution ………………………....24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i

Support video color format …………………………..…………….24bit/deep color 30bit,36bit

Support audio format……………….DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD

Max bandwidth…………………………………………………………………………….225MHz

Max baudrate…………………….………………….…………………………………..6.75Gbps

Input/Output TMDS signal ………….…………………………..…… …..0.5~1.5Volts p-p(TTL)

Input/Output DDC signal ……………………………………………..………… 5Volts p-p (TTL)

Input cable distance..…... ……………………….……………….………….<=15m HDMI AWG26

Output cable distance………………………………….…...<=25m AWG26 HDMI standard cable

Max working current……………………………………………………………………….....600mA

Power adapter format Input: …………….....AC (50HZ, 60HZ) 100V-240V; Output: DC5V/1A

Operating Temperature range……..…………….………………………………… (-15 to +55 Centigrade)

Operating Humidity range………………………….….……….5 to 90%RH (No Condensation)

Dimension (L x W x H) ……………………………….………………………260x115x45 (mm)

Weight…..………………………………………………………..…….………………………1015g

Features:

1. Easy to Use:Install in seconds, no need of setting.

2. One HDMI Input, four HDMI outputs

3. Supports Full 3D and 1080p HDTV.

4. Supports highest video resolution 1080p.

5. Supports HDCP

6. Supports uncompressed audio such as LPCM

7. Supports compressed audio such as DTS Digital, Dolby Digital(including DTS-HD and Dolby True HD).

8. Power consumption: 5W (max.)

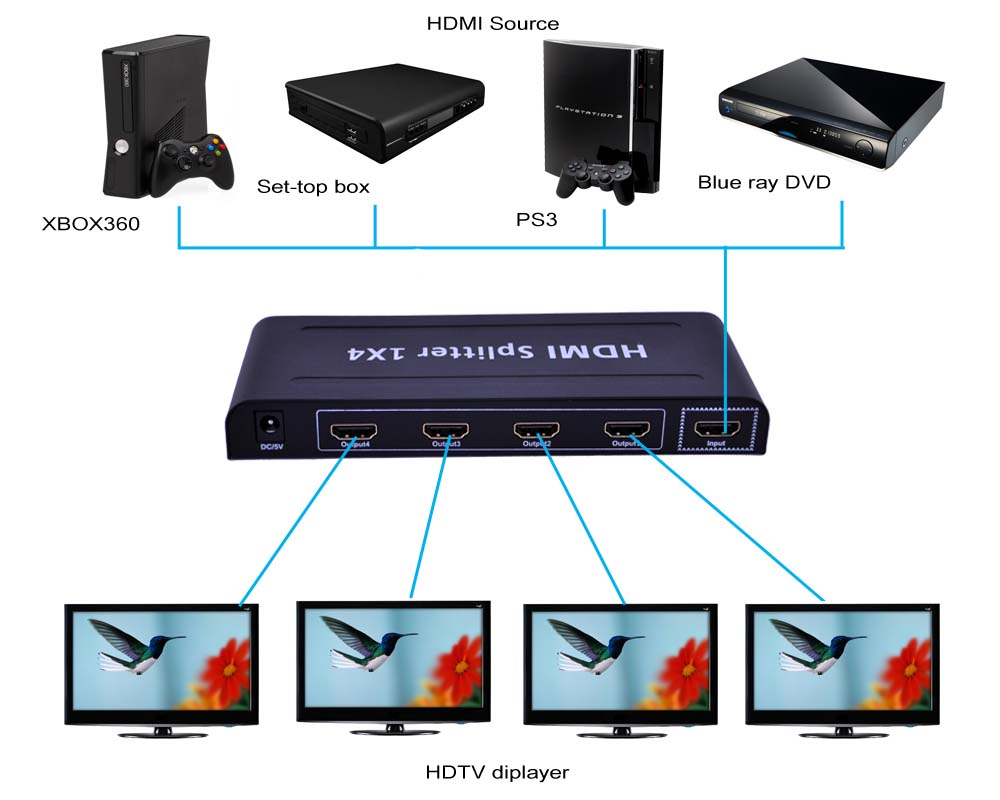

Sketch map
