HDMI splitter 1 to 16

Specifications:

HDMI resolution ………………………....24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i

Support video color format …………………………..…………….24bit/deep color 30bit,36bit

Support audio format……………….DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD

Max bandwidth……………………………………………………………………………..225MHz

Max baudrate……………….…….………………….…………………………………..6.75Gbps

Input/Output TMDS signal ………….…………………………..……...… 0.5~1.5Volts p-p(TTL)

Input/Output DDC signal ……………………………………………..………… 5Volts p-p (TTL)

Input cable distance..…... …………….………………….<=15m AWG26 HDMI standard cable

Output cable distance……………………………….…...<=25m AWG26 HDMI standard cable

Max working current……………………………………………………………………….....2.0A

Power adapter format..Input: ……………....AC (50HZ, 60HZ) :100V-240V; Output: DC5V/6A

Operating Temperature range……..…………….………………………………… (-15 to +55 Centigrade)

Operating Humidity range………………………….….……….5 to 90%RH (No Condensation)

Dimension (L x W x H) ……………………………….……………….………… 380x140x60(mm)

Weight…..………………………………………………………..…….…..……………………2030g

Features:

1. Easy to Use: Install in seconds, no need of setting.

2. One HDMI input signal split to sixteen HDMI sink devices.

3. Supports Full 3D and 1080p HDTV.

4. Supports HDCP and CEC.

5. Supports uncompressed audio such as LPCM.

6. Supports compressed audio such as DTS Digital, Dolby Digital(including DTS-HD and Dolby True HD).

7. Support Blue-Ray 24/50/60fs/HD-DVD/xvYCC.

8. Support signal retiming.

9. Need 2A/12V power supply.

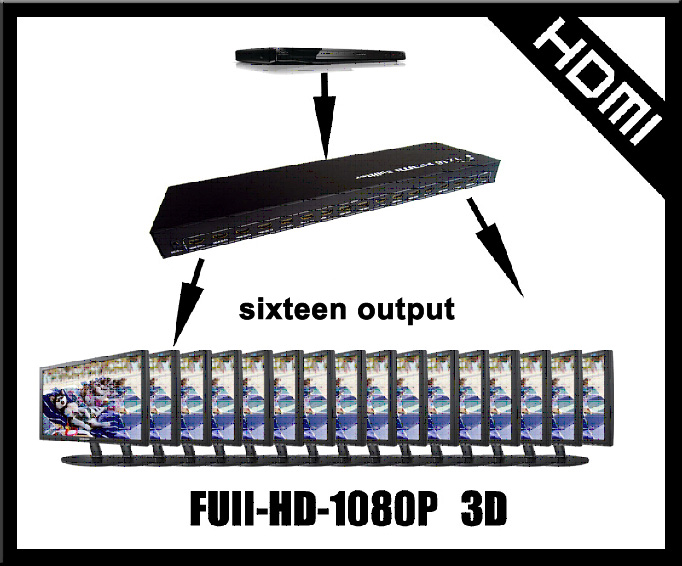

Sketch map
