HDMI Splitter Extender 2 to 6

HDMI Splitter Extender 2 to 6

HDMI Splitter Extender 2 to 6
Specifications:
HDMI version:HDMI 1.4a
HDMI resolution:24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i
Support video format:8/10/12bit deep color
Support audio format:DTS-HD/Dolby-trueHD/DTS/Dolby-AC3/DSD
HDMI input port:2
HDMI output port:2
RJ45 port:4
Max bandwidth:225MHz
Max baud rate:2.25Gbps
Input cable distance:≤15m AWG26 HDMI standard cable
Output cable distance:≤60m cat5e/6 or ≤25m AWG26 HDMI standard cable
Max working current:1600mA
Power adapter format:input:AC (50HZ, 60HZ) 100V-240V; Output: DC5V/3A
Operating Temperature range:(-15 to +55℃)
Dimension (L x W x H):215x72x22 (mm)
Weight:370g

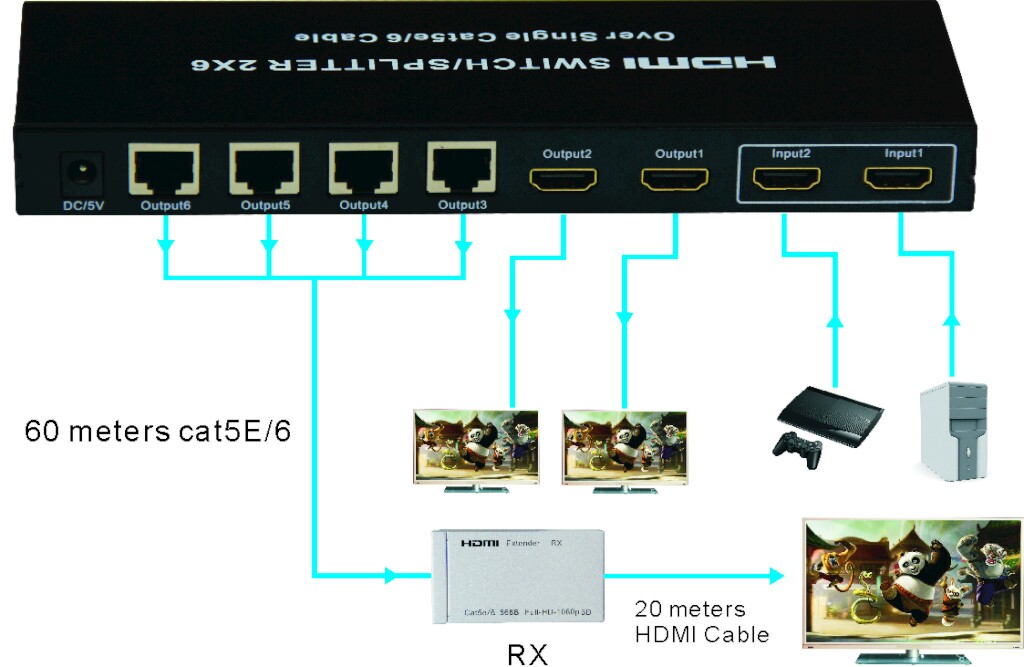

Sketch map
