60m HDMI extender over single CAT5e/6

Specifications:

Length of CAT-6 cable between Rx and TX…..……………….……………..Up to 60 meters

HDMI Input…..…………………...………24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i

Support audio format input..………DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD

HDMI Output…..…………….…...………24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i

Support audio format output...……. …………………………LPCM7.1/DTS/Dolby-AC3/DSD

Max bandwidth……………………………………………………………………………165MHz

Max baud rate……………….…….………………….………….………………………4.95Gbps

Input Video signal ………….…………………………..…………………….… 0.5~1.5Volts p-p

Output DDC signal ……………………………………………………………… 5Volts p-p (TT1L)

Input/Output HDMI cable distance………….……………..≤20m AWG26 HDMI standard cable

Max working current………………………………………………………………………...800mA

Power adapter format………...………Input:AC (50HZ, 60HZ) 100V-240V; Output: DC5V/2A

Operating Temperature range……..…………….………………………………… (-15 to +55℃)

Operating Humidity range………………………….….……….5 to 90%RH (No Condensation)

Dimension (L x W x H) ……………………………….……………………82x44x22 (mm)

Features:

1. Support HDMI 1.3 protocol

2. Support full 3D 1080P

3. HDCP 1.2 protocol compliant

4. Signal transmission :Single CAT-5e STP or CAT-6 STP(recommended) cables up to 60 metres instead of HDMI cables are connected between TX and RX Extender.

5. Support CEC

6. Audio format support : DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD

7. No loss of quality

8. Installs in minutes

9. Need DC5V/2A power supply

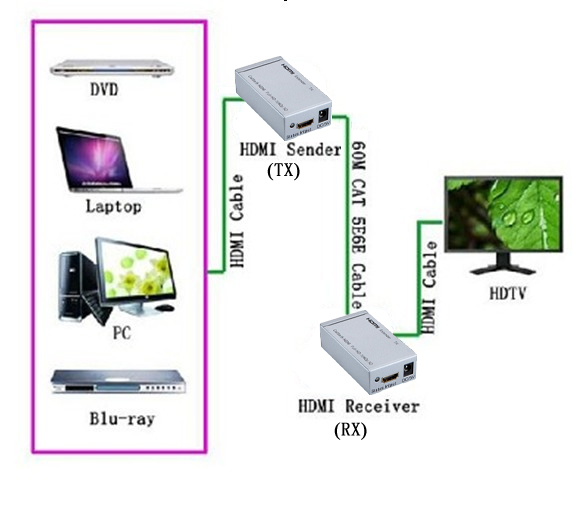

Sketch map
